薄膜晶体管（TFT）是一种电压控制电流场通断的微小开关，是半导体电路最关键的基础组成单元之一。薄膜晶体管当下最广泛应用于LCD/OLED/QLED/Mini-LED/Micro-LED 等平板显示面板制造。在显示面板中，TFT是像素寻址、像素驱动、像素补偿、时序控制（GOA、DEMUX……）等功能实现过程中最基础、最重要的元器件。TFT应用场景还包括：下一代印刷OLED/QLED显示、下一代电浸润微流控芯片等先进实验的核心芯片、满足不同场景如医疗的新型光电/压力/生物/化学等类型的传感器、智能物联网组件及仿生电子产品等等。
The thin-film transistor (TFT) is a semiconducting switch that controls the on-off of the current field by applying different voltages and is one of the most critical semiconductor elements. The most widespread application of thin-film transistors is currently used in LCD/OLED/QLED/Mini-LED/Micro-LED and other flat panel display panel manufacturing. In the display panel, TFT is the most basic and important component in the realization of pixel addressing, pixel driving, pixel compensation, timing control (GOA, DEMUX…), and other functions. TFT application scenarios also include core chips for advanced experiments such as next-generation printed OLED/QLED displays, next-generation electrowetting microfluidic chips, new photoelectric/pressure/biological/chemical sensors that meet different application scenarios, smart IoT components and bionic electronic products, etc.
图1（来源于网络）: OTFT应用示例
Figure 1 (picturesfromtheInternet) : The application examples of OTFT
有机薄膜晶体管（OTFT，organic thin film transistor）本质仍是一种场效应晶体管，其基本结构和功能与传统的薄膜晶体管相同，不同的是其核心材料采用了有机半导体。与现有的无机薄膜晶体管如非晶硅或多晶硅TFT相比，OTFT具有以下特点：加工温度低（一般在180℃以下）；本真柔性，适用于柔性器件制造；材料来源广泛，同时工艺过程大大简化，成本大幅度降低；适合大面积加工且环境友好。
The organic thin film transistor (OTFT) is a field-effect transistor using organic semiconductors in its channel. The basic structure and function of organic thin-film transistors (OTFTs) are basically the same as those of traditional thin-film transistors (TFTs). Compared with existing inorganic TFTs such as amorphous silicon or polysilicon TFTs, OTFTs have the following advantages: low processing temperature (generally below 180°C), true flexibility, which is highly suitable for flexible device manufacturing, a wide range of material sources and simultaneously with a greatly simplified process, greatly reduced costs; suitable for large-area processing, and at the same time environmentally friendly.

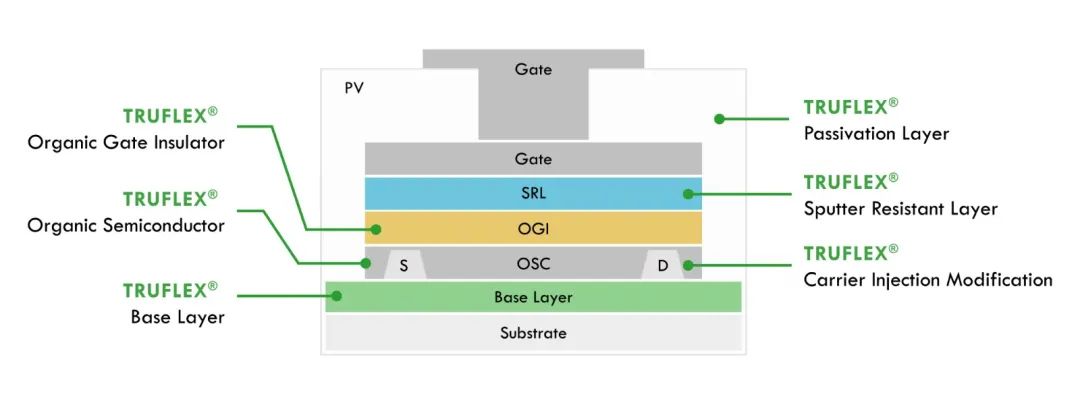

图2：SmartKem的OTFT材料族
Figure 2: Chemistry of the complete OTFT stack of SmartKem

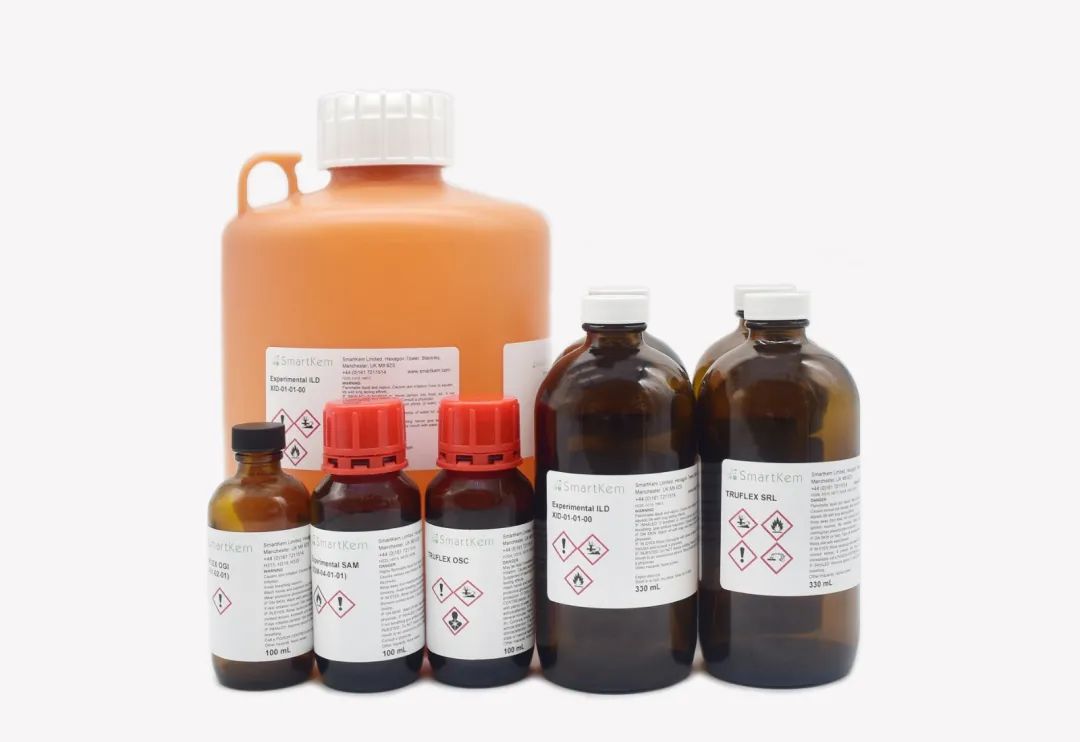

图3：SmartKem量产的OTFT材料（公斤级）
Figure 3: OTFT materials produced at kg scale by SmartKem
SmartKem已成功开发出了由一系列性能优越且表现稳定的有机半导体材料、有机介电材料及有机界面修饰材料等构成的完备半导体功能材料体系（如图2），对这些材料拥有绝对的自主知识产权，并具有一定的批量试生产能力（如图3）。作为最具高稳定性等优异性能的有机半导体之一，SmartKem的TRUFLEX®墨水可广泛地应用于显示驱动背板, 生物/化学/光电传感器，逻辑电路等功能单元。SmartKem更加重视成熟工艺与先进技术的平衡发展，还开发了成熟的有机薄膜晶体管（OTFT）技术工艺和完整的供应链，可轻松应用于制备各类基于无源/有源矩阵器件的原型样机或实用产品。
SmartKem holds a family of commercially available and patented organic electronic materials (as shown in Figure 2) such as organic semiconductors, organic dielectric material, organic interface modifiers et, al. that can be easily obtained in high quality and relatively large quantity (as shown in Figure 3). As one of the most promising organic semiconductors with high stability and other excellent performances, SmartKem’s TRUFLEX® is used for a wide range of applications, including display backplanes, bio/chemical/photo sensors and logic circuits et, al. SmartKem pays more attention to the balanced development of mature materials and advanced technology, and also has developed a mature technical process and a complete supply chain that can be easily used for manufacturing many kinds of prototype or practical products based on passive/active matrix device.

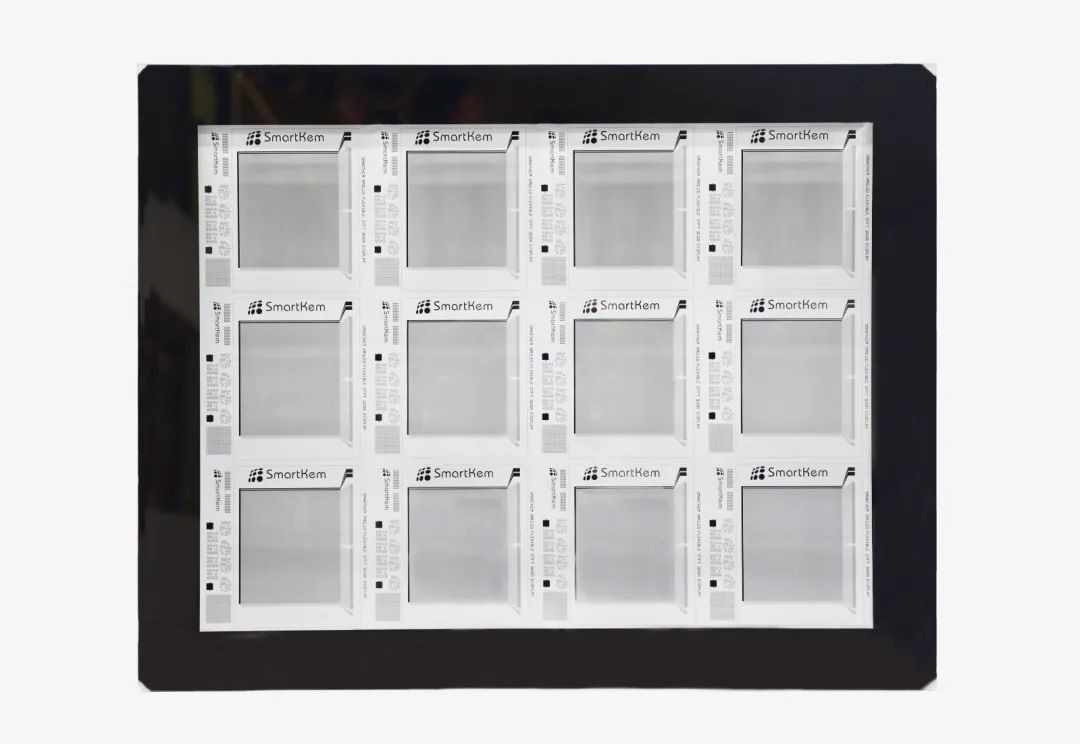

图4：基于TRUFLEX® OTFT的OLED驱动背板（尺寸G2.5）
Figure 4:OLED driving backplane on the base of TRUFLEX® OTFT (Size G2.5)

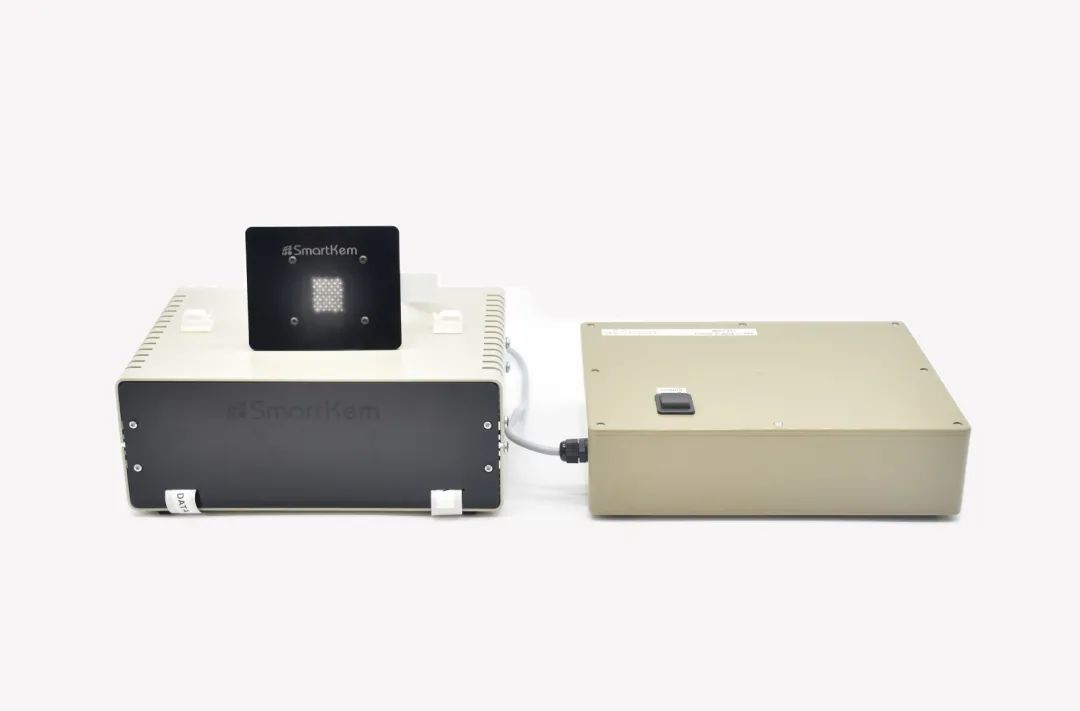

图5：有机薄膜晶体管驱动Mini-LED背光样机
Figure 5:OTFT driven Mini-LED backlight demonstrator
作为领先的OTFT技术供应商，SmartKem真诚期待持续与该领域合作伙伴协作创新、携手共进，包括但不限于学术界、材料最终用户、设计公司、工艺代工厂、设备制造商和系统集成商。
As a leading OTFT technology platform provider, SmartKem is looking forward to continuing to collaborate with partners innovating in the area, including but not limited to academics, material end users, the design community, process foundries, devices makers and system-integration players.
SmartKem简介
SmartKem是有机薄膜晶体管(OTFT)技术供应商，为下一代柔性电子、显示器、传感器和逻辑提供动力。SmartKem独特的TRUFLEX®技术可使有机油墨在低至80°C的温度下沉积到基板上，从而可让制造商使用现有行业标准的设备和基础设施来使用各种低成本柔性塑料基板。SmartKem的晶体管堆栈拥有灵活、可弯曲、可穿戴和轻便等特性，可用于包括可弯曲智能手机显示屏，曲面汽车显示屏，彩色电子纸显示屏，可穿戴设备，指纹传感器，印刷生物传感器等应用领域。
About SmartKem
SmartKem is a pioneer in the manufacture of Application Specific Organic Materials for organic thin-film transistor (OTFT) backplanes that power the next generation of flexible electronics, displays, sensors and logic. SmartKem’s unique TRUFLEX® technology allows inks to be deposited at a low temperature on low-cost substrates, resulting in transistor stacks that are flexible, bendable, wearable, and lightweight. These can be used in a number of next generation display technologies including bendable smartphone displays, curved automotive displays, full color e-paper displays,wearables, fingerprint sensors, printed biosensors and logic.
